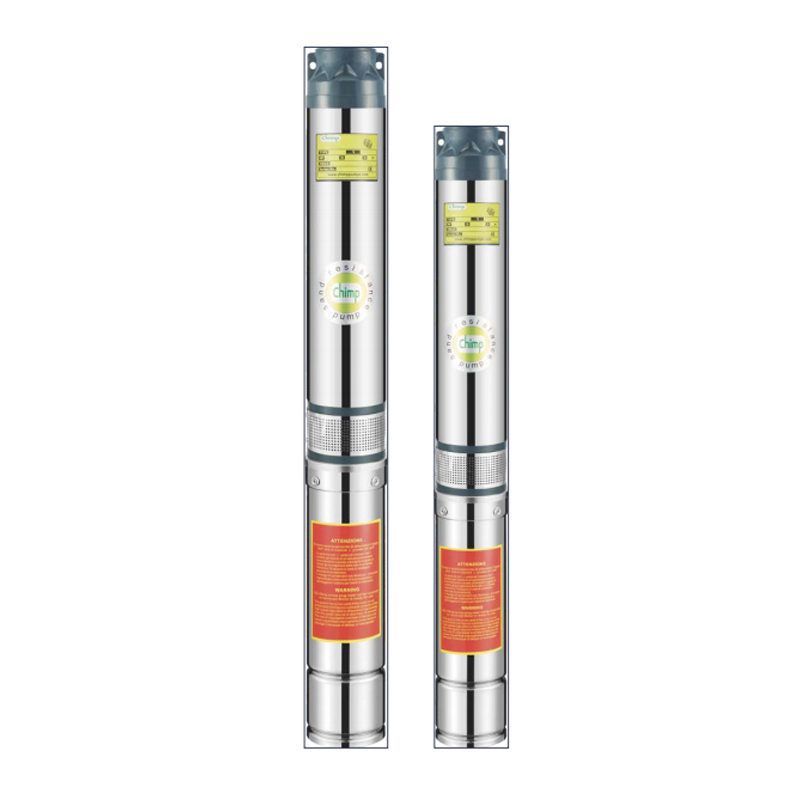

6''SR 30
6SR
6: Diameter sumur: 145mm (6 ")
SR: Pompa submersible Seri SR
30: Kapasitas (m 3/ jam)
03: Panggung
3.0: Daya motor (KW)
Untuk suplai air dari sumur atau waduk.
Untuk keperluan rumah tangga, untuk aplikasi sipil dan industri.
Untuk penggunaan taman dan irigasi
Suhu fluida maksimum hingga +35 °C.
Kandungan pasir maksimum: 0,25%.
Perendaman maksimum: 100m.
Diameter sumur minimum: 6 ".
Motor yang dapat diputar ulang atau motor layar obturasi penuh
Tiga fase: 380V-415V / 50Hz
Dilengkapi dengan kotak kontrol mulai atau kotak kontrol otomatis digital
Pompa dirancang dengan casing yang ditekan
Standar dimensi NEMA
Segel mekanis khusus
Tegangan atau frekuensi lain 60 Hz

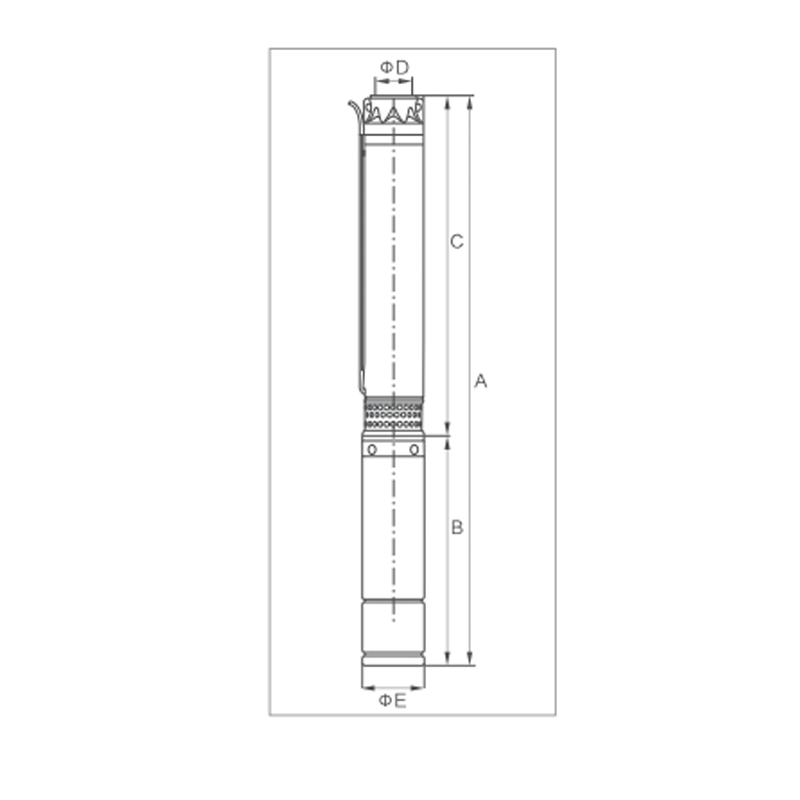

| UKURAN PARATEMER TABEL | |||||
| MODEL | A | B | C | D | E |
| 6SR30 03-3.0 | 1046 | 482 | 564 | 3" | 145 |
| 6SR30 04-4.0 | 1119 | 502 | 617 | 3" | 145 |
| 6SR30 06-5.5 | 1286 | 562 | 724 | 3" | 145 |
| 6SR30 08-7.5 | 1443 | 612 | 831 | 3" | 145 |
| 6SR30 09-9.2 | 1571 | 687 | 884 | 3" | 145 |
| 6SR30 11-11 | 1723 | 732 | 991 | 3" | 145 |
| 6SR30 12-13 | 1827 | 782 | 1045 | 3" | 145 |
| 6SR30 14-15 | 1988 | 837 | 1151 | 3" | 145 |
| 6SR30 17-18.5 | 2169 | 857 | 1312 | 3" | 145 |
| UKURAN PARATEMER TABEL | |||||
| MODEL | A | B | C | D | E |
| 6SR30 03-3.0 | 1046 | 482 | 564 | 3" | 145 |
| 6SR30 04-4.0 | 1119 | 502 | 617 | 3" | 145 |
| 6SR30 06-5.5 | 1286 | 562 | 724 | 3" | 145 |
| 6SR30 08-7.5 | 1443 | 612 | 831 | 3" | 145 |
| 6SR30 09-9.2 | 1571 | 687 | 884 | 3" | 145 |
| 6SR30 11-11 | 1723 | 732 | 991 | 3" | 145 |
| 6SR30 12-13 | 1827 | 782 | 1045 | 3" | 145 |
| 6SR30 14-15 | 1988 | 837 | 1151 | 3" | 145 |
| 6SR30 17-18.5 | 2169 | 857 | 1312 | 3" | 145 |
| DATA KINERJA 50 Hz | ||||||||||||||
| MODEL | P2 | PENGIRIMAN n=2850 l/mnt | ||||||||||||
| 3~ 380v/415v | KW | HP | Q | l/mnt | 0 | 83 | 167 | 250 | 333 | 417 | 500 | 583 | 677 | 717 |
| m3/jam | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 43 | ||||
| 6SR30 03-3.0 | 3.0 | 4.0 | H(m) | 41 | 38 | 36 | 34 | 32 | 27 | 21 | 18 | 12 | 4 | |
| 6SR30 04-4.0 | 4.0 | 5.5 | 54 | 50 | 48 | 45 | 42 | 36 | 28 | 24 | 16 | 5 | ||
| 6SR30 06-5.5 | 5.5 | 7.5 | 81 | 76 | 72 | 68 | 63 | 54 | 42 | 36 | 24 | 6 | ||
| 6SR30 08-7.5 | 7.5 | 10 | 108 | 101 | 96 | 90 | 84 | 72 | 56 | 48 | 32 | 7 | ||
| 6SR30 09-9.2 | 9.2 | 12.5 | 122 | 113 | 108 | 102 | 95 | 81 | 63 | 54 | 36 | 8 | ||
| 6SR30 11-11 | 11 | 15 | 149 | 139 | 132 | 124 | 116 | 99 | 77 | 66 | 44 | 9 | ||
| 6SR30 12-13 | 13 | 17.5 | 162 | 151 | 144 | 136 | 126 | 108 | 84 | 72 | 48 | 10 | ||
| 6SR30 14-15 | 15 | 20 | 189 | 176 | 168 | 158 | 147 | 126 | 98 | 84 | 56 | 11 | ||
| 6SR30 17-18.5 | 18.5 | 25 | 230 | 214 | 204 | 192 | 179 | 153 | 119 | 102 | 68 | 12 | ||
