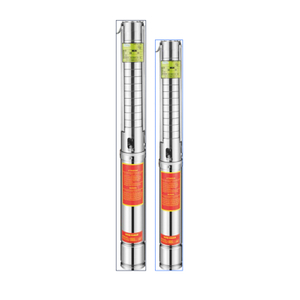

4''SP 8
4SP
4: Diameter sumur: 100mm (4 ")
SP: Pompa submersible Seri QJ
M: Motor fase tunggal (Tiga fase tanpa M) Fase tunggal:
220V-240V/50Hz
8: Kapasitas (m3 / jam)
05: Panggung
0,75: Daya motor (KW)
Untuk suplai air dari sumur atau waduk.
Untuk keperluan rumah tangga, untuk aplikasi sipil dan industri.
Untuk penggunaan taman dan irigasi.
Suhu fluida maksimum hingga +35 °C.
Kandungan pasir maksimum: 0,25%.
Perendaman maksimum: 100m.
Diameter sumur minimum: 4".
Motor yang dapat diputar ulang atau motor layar obturasi penuh
Tiga fase: 380V-415V / 50Hz
Fase tunggal: 220V-240V / 50Hz
Dilengkapi dengan kotak kontrol mulai atau kotak kontrol otomatis digital
Pompa dirancang dengan casing yang ditekan
Standar dimensi NEMA
Segel mekanis khusus
Tegangan atau frekuensi lain 60 Hz
| UKURAN PARATEMER TABEL | |||||
| MODEL | A | B | C | D | E |
| 4SPM805-0,75 | 750 | 332 | 418 | 11/4"-2" | 95 |
| 4SPM807-1.1 | 914 | 412 | 502 | 11/4"-2" | 95 |
| 4SPM810-1.5 | 1070 | 442 | 628 | 11/4"-2" | 95 |
| 4SPM812-2.2 | 1214 | 502 | 712 | 11/4"-2" | 95 |
| 4SPM814-2.2 | 1323 | 527 | 796 | 11/4"-2" | 95 |
| 4SP812-2.2 | 1179 | 467 | 712 | 11/4"-2" | 95 |
| 4SP814-2.2 | 1298 | 502 | 796 | 11/4"-2" | 95 |
| 4SP818-3.0 | 1516 | 552 | 964 | 11/4"-2" | 95 |
| 4SP821-4.0 | 1692 | 602 | 1090 | 11/4"-2" | 95 |
| 4SP824-4.0 | 1843 | 627 | 1216 | 11/4"-2" | 95 |
| 4SP830-5.5 | 2180 | 712 | 1468 | 11/4"-2" | 95 |
| 4SP835-5.5 | 2390 | 712 | 1678 | 11/4"-2" | 95 |
| 4SP840-7.5 | 2690 | 802 | 1888 | 11/4"-2" | 95 |
| 4SP844-7.5 | 2858 | 802 | 2056 | 11/4"-2" | 95 |
| DATA KINERJA 50 Hz | |||||||||||||||
| MODEL | P2 | PENGIRIMAN n=2850 l/mnt | |||||||||||||
| 1~ 220v/240v | 3~ 380v/415v | KW | HP | Q | l/mnt | 0 | 83 | 100 | 117 | 133 | 150 | 167 | 183 | 200 | 208 |
| m3/jam | 0 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 12.5 | |||||
| 4SPM805-0,75 | 4SP805-0,75 | 0.75 | 1.0 | H(m) | 31 | 27 | 25 | 23 | 21 | 19 | 15 | 13 | 9 | 1 | |
| 4SPM807-1.1 | 4SP807-1.1 | 1.1 | 1.5 | 43 | 38 | 35 | 32 | 29 | 27 | 21 | 18 | 13 | 1 | ||
| 4SPM810-1.5 | 4SP810-1.5 | 1.5 | 2.0 | 61 | 54 | 50 | 46 | 42 | 38 | 30 | 25 | 19 | 2 | ||
| 4SPM812-2.2 | 4SP812-2.2 | 2.2 | 3.0 | 73 | 65 | 60 | 55 | 50 | 46 | 36 | 30 | 23 | 3 | ||
| 4SPM814-2.2 | 4SP814-2.2 | 2.2 | 3.0 | 85 | 76 | 70 | 64 | 59 | 53 | 42 | 35 | 27 | 3 | ||
| 4SP818-3.0 | 3.0 | 4.0 | 110 | 97 | 90 | 83 | 76 | 68 | 54 | 45 | 35 | 4 | |||
| 4SP821-4.0 | 4.0 | 5.5 | 128 | 113 | 105 | 97 | 88 | 80 | 63 | 53 | 40 | 5 | |||
| 4SP824-4.0 | 4.0 | 5.5 | 146 | 130 | 120 | 110 | 101 | 91 | 72 | 60 | 46 | 6 | |||
| 4SP830-5.5 | 5.5 | 7.5 | 183 | 162 | 150 | 138 | 126 | 114 | 90 | 75 | 58 | 7 | |||
| 4SP835-5.5 | 5.5 | 7.5 | 214 | 189 | 175 | 161 | 147 | 133 | 105 | 88 | 67 | 8 | |||
| 4SP840-7.5 | 7.5 | 10 | 244 | 216 | 200 | 184 | 168 | 152 | 120 | 100 | 77 | 9 | |||
| 4SP844-7.5 | 7.5 | 10 | 268 | 238 | 220 | 202 | 185 | 167 | 132 | 110 | 85 | 10 | |||
